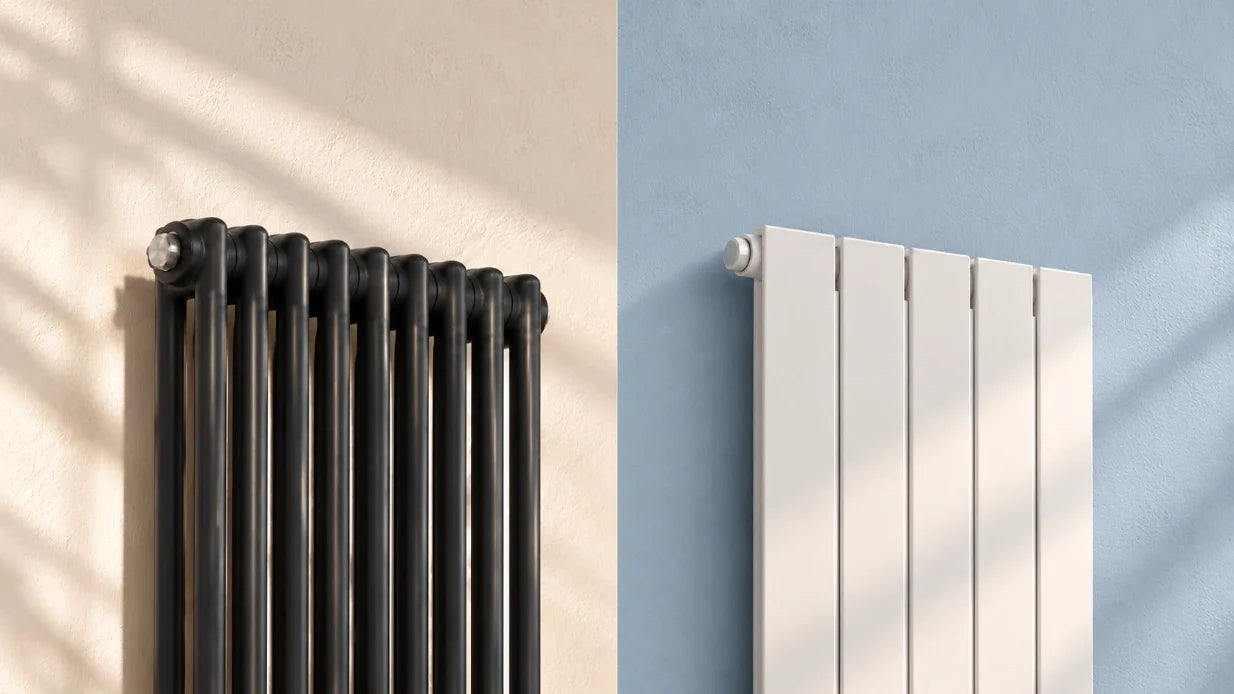

Column vs Panel Radiators: What’s the Difference?

Choosing a radiator involves more than finding the right colour and size. Terms such as 2 column, 3 column, single panel and double panel describe how a radiator is built, helping you understand its shape, depth and heating performance.

In this guide, we explain the differences between these designs, introduce traditional convector radiator types, and show you what to consider when choosing a radiator for your home.

What Is the Difference Between Column and Panel Radiators?

Column radiators have a series of connected sections made from tubular columns. Their distinctive appearance works well in both traditional and contemporary interiors.

Panel radiators have a different construction. Traditional panel radiators use broad steel panels, often with convection fins behind or between them. Modern designer radiators may use flat or oval heating bars arranged in a single or double row.

The terminology describes different aspects of the construction: column count refers to the columns within each section, while panel count refers to the layers of heating panels or bars. Checking the product’s side view and technical drawing is often the easiest way to understand the difference.

What Is a 2 Column Radiator?

A 2 column radiator has two columns running from front to back within each section. The sections sit side by side to form the radiator’s overall width.

“2 column” does not mean the radiator has only two visible vertical tubes across its front.

Within the same product range, a 2 column model usually has a slimmer profile than a 3 column model. This makes it worth considering where you want the character of a column radiator with less depth.

Choose a 2 column radiator when:

• You prefer a slimmer column design.

• The radiator’s projection into the room matters.

• Its rated heat output meets your room’s heating requirements.

What Is a 3 Column Radiator?

A 3 column radiator has three columns running from front to back within each section.

Compared with a 2 column radiator of the same height, section count and product range, it generally has greater depth and a higher heat output. This can provide more heating capacity without increasing the radiator’s height or width.

The extra depth needs to be considered in narrow rooms, behind doors and beside furniture. Check the installed projection from the wall, including the brackets.

Choose a 3 column radiator when:

• You need more output than a comparable 2 column model provides.

• Available wall width is limited.

• There is enough room for a deeper radiator.

What About 4 Column Radiators?

Four column radiators follow the same principle, with four columns within each section. They offer another option where greater heat output is needed within a particular wall area, although they also have a deeper profile.

Always compare the actual dimensions and output of individual models rather than choosing by column count alone.

What Is a Single Panel Designer Radiator?

A single panel designer radiator typically has one row of heating bars or tubes. These may have flat, oval or other profiles, depending on the design.

Its relatively slim construction can suit spaces where you want a less prominent radiator. Single panel designs are available in both vertical and horizontal formats.

A single panel radiator can be a suitable choice when its output meets the room’s heat loss and a slim profile is a priority.

What Is a Double Panel Designer Radiator?

A double panel designer radiator typically has two rows of heating bars or tubes, positioned one behind the other.

The additional heating surface generally provides greater output than a comparable single panel version of the same height and width. This can be useful when you need more heat but cannot accommodate a wider radiator.

However, double panel does not automatically mean double the heat output. The difference depends on the construction and dimensions of the specific models.

Single Panel vs Double Panel Designer Radiators

Compare models within the same range where possible, and use their published heat outputs to make your final decision.

Understanding Traditional Panel Radiator Types

Traditional steel panel convector radiators use a separate numbering system. Common examples include Type 11, Type 21, Type 22 and Type 33.

These numbers describe the number of water-filled panels and sets of convection fins. The fins increase the surface available to transfer heat to the surrounding air.

This explains why two radiators described as “double panel” can have different specifications: a Type 21 has one set of convection fins, while a Type 22 has two.

These type codes should not automatically be applied to modern designer radiators. A double panel designer radiator is not necessarily a Type 22 radiator.

Vertical vs Horizontal Radiators

Vertical and horizontal describe the radiator’s orientation rather than its column or panel construction.

A vertical radiator uses a taller, narrower section of wall. It is worth considering where wider wall areas are needed for furniture or other fittings.

A horizontal radiator uses a wider, lower section of wall and may fit beneath a window, depending on the available clearance.

Both orientations are available in different constructions. You can therefore choose a vertical column radiator, a horizontal column radiator, or a single or double panel designer radiator to suit the layout.

How to Choose the Right Radiator for Your Room

Start with the Required Heat Output

Before choosing a design, establish how much heat the room needs. Room dimensions, insulation, glazing and external walls all affect its heating requirements.

A BTU calculator provides a useful starting estimate. For a heating system upgrade or a room with unusual requirements, a heating professional can carry out a more detailed heat loss calculation.

Once you know the required output, compare radiators that can meet it within your available space.

Compare Heat Outputs at the Same Delta T

Radiator output is commonly listed in watts or BTU per hour, but the temperature conditions behind the rating also matter.

Delta T, written as ΔT, is the difference between the radiator’s average water temperature and the room temperature.

A rating at ΔT60 cannot be compared directly with one at ΔT50 or ΔT30. The same radiator delivers less heat at a lower Delta T.

Compare products at the same rating, and check their output at your intended operating temperatures, particularly for lower-temperature heating systems.

Check the Full Installed Dimensions

Measure the available height and width, then check:

• The radiator’s projection from the wall.

• Space for valves and pipe connections.

• Clearance around doors and furniture.

• Pipe centres and connection positions.

• Wall suitability and fixing requirements.

A deeper radiator may provide the output you need, but it must also fit comfortably into the room.

Choose the Appearance You Prefer

Once the heating requirements and dimensions are covered, consider the look.

Column radiators offer a distinctive sectional design that suits a range of interiors. Flat or oval panel designer radiators provide other styling options, from simple horizontal layouts to tall vertical features.

Colour and finish can then help the radiator blend into the room or become a focal point.

Frequently Asked Questions

Is a 3 Column Radiator Better Than a 2 Column Radiator?

A 3 column radiator generally provides more output than a comparable 2 column model, but it also takes up more depth. The better choice is the one that meets your heating requirements and fits your space.

Are Double Panel Radiators Always Better?

Double panel radiators are useful when additional output is needed within a similar wall area. A single panel model may be sufficient where it meets the room’s requirements and a slimmer design is preferred.

Does a Double Panel Radiator Give Twice the Heat?

Not necessarily. Check the manufacturer’s published output for each model rather than assuming a fixed increase.

Are Column Radiators Only for Traditional Homes?

No. Their sectional appearance can complement traditional rooms, while simpler shapes and contemporary finishes can also work in modern interiors.

Can I Replace a Single Panel Radiator with a Double Panel Model?

It may be possible, but matching height and width alone is not enough. Check pipe centres, connections, brackets, wall projection and the new radiator’s output. An installer can confirm what changes are required.

Find a Radiator That Suits Your Home

Whether you prefer a 2 column radiator, a deeper 3 column design or a single or double panel designer radiator, start with the heat your room needs and the space you have available.
