Concealed vs Exposed Showers: What's the Difference?

Walk into any bathroom showroom in Ireland today and you will see two fundamentally different approaches to shower plumbing. One hides everything behind the wall. The other puts it all on display. Both work. Both have trade-offs. Understanding the difference between a concealed shower and an exposed shower helps you choose the right setup before your tiler starts work.

What Is an Exposed Shower?

An exposed shower, sometimes called a bar shower, mounts directly onto the wall surface. The valve, pipework and riser rail are all visible. Two pipes come out of the wall, connect to the valve body, and a rail carries the shower head upward.

This is the most common type of shower installation in Irish homes. It is straightforward to fit, easy to maintain, and does not require any wall cavity work. If the valve develops a fault, your plumber can access it without touching a single tile.

Exposed showers suit most bathroom renovations where the walls are already tiled or where keeping costs and disruption to a minimum matters.

What Is a Concealed Shower?

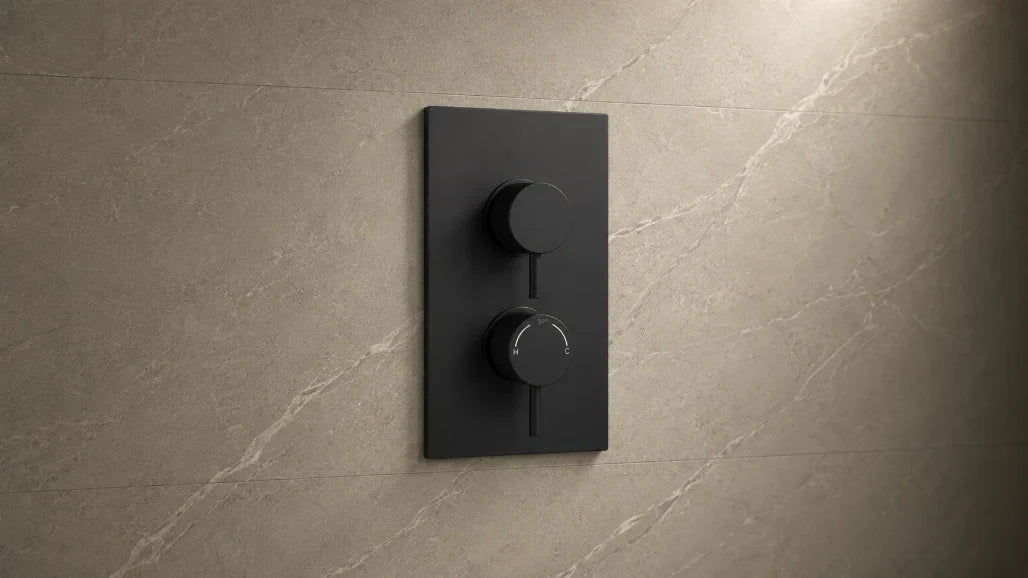

A concealed shower hides the valve body and all pipework behind the wall. Only a slim control plate and the shower outlet are visible on the finished surface. The effect is a much cleaner, more minimal look.

Installation is more involved. The valve body sits inside the wall cavity, typically mounted on a bracket between studs or set into a purpose-built recess. All hot and cold supply pipes, along with the outlet pipe to the shower head, run behind the tiles. The wall then gets waterproofed and tiled over, leaving just the trim plate exposed.

This means a concealed shower must be planned before tiling. Retro-fitting one into a finished bathroom means stripping tiles, opening the wall, running pipework, and re-tiling - a much bigger job.

How They Compare

Appearance

Concealed showers win here. A single chrome or matt black plate on the wall with a ceiling-mounted rain head looks significantly cleaner than a visible bar valve and riser rail. If you are going for a modern, minimal bathroom design, concealed is the natural choice.

Exposed showers have their own appeal, though. A well-designed thermostatic bar valve in brushed brass or matt black can be a deliberate design feature rather than something to hide.

Installation Cost

An exposed shower is cheaper to install. There is less labour involved, no wall cavity work, and the plumbing is accessible from the front. A concealed shower adds cost for the deeper wall recess, additional pipework, and the extra tiling and waterproofing around the valve body.

As a rough guide, expect a concealed installation to cost 30–50% more in labour than an exposed equivalent in an Irish bathroom.

Maintenance and Repairs

This is where exposed showers have a clear advantage. If a cartridge fails or a seal needs replacing, a plumber can access the valve in minutes. With a concealed shower, accessing the valve body means removing the trim plate and working blind inside the wall cavity. Some concealed valves include an access panel, but many do not.

Choose a concealed valve from a reputable manufacturer that stocks replacement cartridges long-term. A cheap concealed valve that cannot be serviced in five years is a false economy.

Water Pressure Compatibility

Both types work with combi boilers, unvented cylinders and gravity-fed systems. The key factor is the valve itself, not whether it is concealed or exposed. Always check the minimum operating pressure before buying. Low-pressure homes - common in older Irish properties - may need a pump regardless of the installation type.

Frequently Asked Questions

Can I switch from exposed to concealed without a full renovation?

Not easily. A concealed valve needs space inside the wall and pipework routed behind the tiles. This means opening up the wall, which effectively becomes a partial renovation of the shower area. If you are already planning to re-tile, that is the time to make the switch.

Which type is better for a small bathroom?

Concealed. Removing the visible bar valve and riser rail frees up visual space and makes a compact bathroom feel less cluttered. Pair it with a fixed rain head and the shower area stays clean and open.
