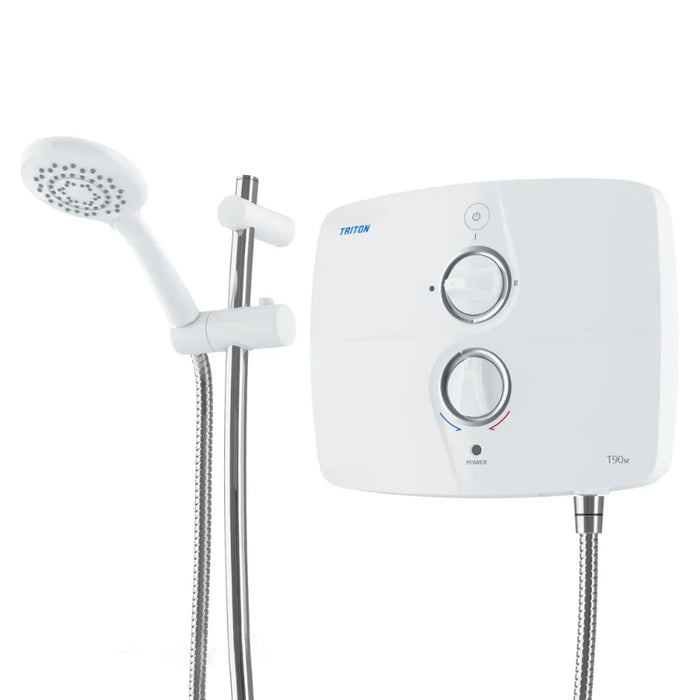

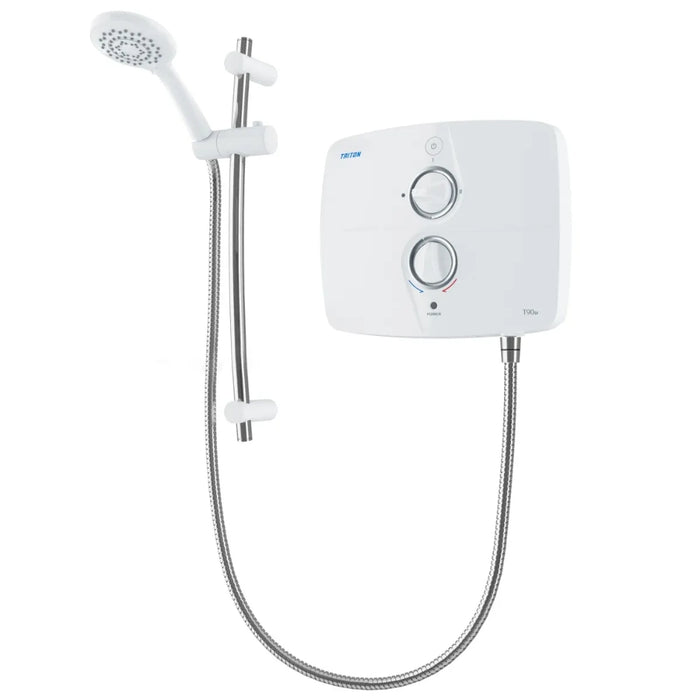

Triton T90SR Pumped Electric Shower

The Triton T90SR Pumped Electric Shower is the perfect solution for homes with low pressure water systems, offering blissfully quiet performance without compromising power. Designed with advanced quiet pump technology, the T90SR is Quiet Mark approved, a recognition awarded to products that deliver high performance while minimising noise.

Thanks to its integrated pump, the T90SR effectively boosts water pressure, delivering a strong, steady flow from gravity-fed systems. Even better, the easy prime pump allows water to flow without needing to run the pump.

Whether you're installing in a stud wall, where vibration and noise can travel more easily, or you're simply looking for a peaceful showering experience, the T90SR delivers. Moreover, it’s designed to easily replace older T90 models, using the same footprint and fixing points for a hassle-free upgrade.

Key Features

• Whisper-quiet operation – you’ll hear the water, not the pump
• Ideal for stud walls, reducing vibration and sound transmission
• Integrated pump boosts low pressure gravity-fed supplies
• Easy prime feature for water flow without running the pump
• Direct replacement for older T90 models – same dimensions and fixing points
• Quiet Mark certified for outstanding low-noise design
• 2-year guarantee for added peace of mind
• A-rated for energy efficiency

Specifications

Temperature Control & Flow Performance

• Temperature Control: Yes
• Stabilised Temperature: Yes

Power Ratings

• Power Rating: 9 kW

Safety

• Low Pressure Indicator: Yes

Controls

• Start/Stop Button: Yes
• Push Button Power Control: No
• Temperature Control: Yes

Shower Fittings

• Number of Showerhead Spray Patterns: 5
• Shower Head Diameter: 110 mm / 4 inches
• Rub Clean Nozzles: Yes
• Rail Diameter: 22 mm / 0.87 inches
• Rail Length: 530 mm / 20.87 inches
• Distance Between Rail Brackets: 480 mm / 18.90 inches
• Shower Head Holder Mechanism: Twist and lock
• Soap Dish: No
• Hose Length: 1.25 m anti-twist
• Hose Retainer: Yes
• Hose Material: Double interlocked stainless steel

Colours & Finish

• Colours Available: White / Chrome
• Finish: White

Guarantee & Approvals

• Guarantee: 2 years
• Approvals: BEAB, CE, BS Kitemark, IP25, Quiet Mark

Installation

• Plumbing System: Gravity fed cold water supply
• Water Entry Points: Left hand side — top, bottom, back
• Cable Entry Points: Left hand side — top, bottom, back
• Outlet Connection: 1/2" BSP male thread
• Minimum Running Pressure / Flow: 8 cm (minimum head pressure)
• Maximum Static Pressure: 10 m (maximum head pressure)
